CENTRIFUGAL PUMPS, API 610 VS4

General

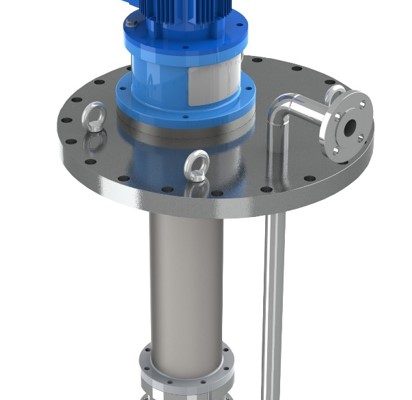

Our API 610 type VS4 sump pumps are vertically suspended, radial split, single stage, line-shaft, volute pumps with separate discharge line. The pump and motor are flexibly coupled and supported by a mounting flange.

Design features

  • Meet API 610 requirements
  • Side or top discharge nozzle
  • Product or externally lubricated Journal bearings
  • Journal bearing distances as per std
  • Seal area meet API 682
  • Mechanical seals and seal systems as per API682
  • Oil or grease lubricated antifriction bearings
  • Other design options available
  • All metallurgies available
  • Design to NORSOK and customer specifications available

VS4 Performance

Q (m3/h)  2500
P (barg)    20

dH (m)  225
T (⁰ C)  -30/+150
