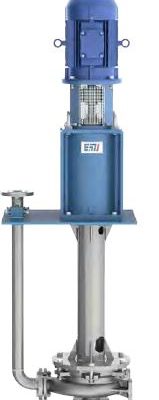

CENTRIFUGAL PUMPS, API 610 VS5

General

Our API 610 type VS5  vertically suspended, cantilever sump pumps with discharge trough the column. The pump and motor are flexibly coupled and supported by a mounting flange.

Design features

  • Meet API 610 requirements
  • Side interface nozzle
  • Cantilever design without submerged bearings and without shaft seal
  • Journal bearing distances as per std
  • Bearing assembly is sealed-off to prevent bearing contamination
  • Other design options available
  • All metallurgies available
  • Design to NORSOK and customer specifications available

VS4 Performance

Q (m3/h)  3500
P (barg)    20

dH (m)  100
T (⁰ C)  +120
