CENTRIFUGAL PUMPS, API 610 VS6

General

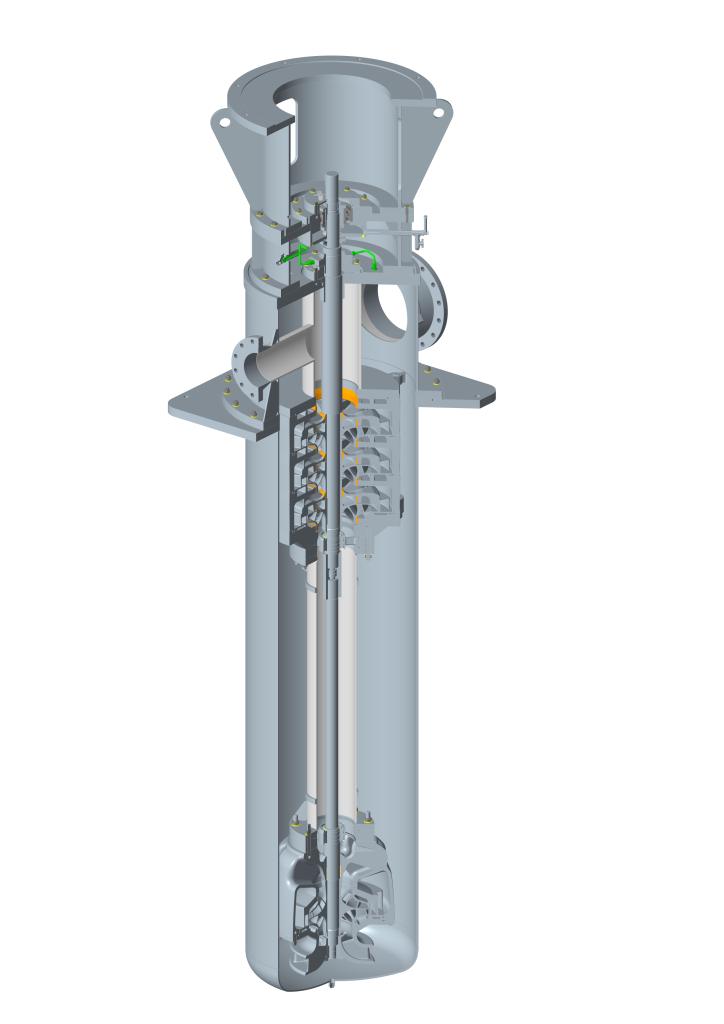

Our API 610 type VS6 sump pumps are vertically suspended, single casing, radial split, single or multistage, diffuser pumps with discharge trough the column. The pump and motor are flexibly coupled and supported by a mounting flange.

Design features

  • Meet API 610 requirements
  • Side – side nozzles
  • First stg. Impeller with low NPSH design or double flow impeller
  • Seal area meet API 682
  • Mechanical seals and seal systems as per API682
  • Oil lubricated antifriction bearings
  • Other design options available
  • All metallurgies available
  • Design to NORSOK and customer specifications available

VS6 Performance

Q (m3/h)  600/3000
P (barg)    140/40

dH (m)  1400/360
T (⁰ C)  +260/160
